With a finite amount of water on the Earth and only a small proportion of this useable, a growing global population increases the demand on this scarce commodity. Sargasso Worldwides range of products enable a large proportion of the World's currently unusable water to be treated and utilised for virtually any application.


Sargasso Worldwides range of products are designed to cope with a wide variety of scenarios, including:

  • Source water conditions, ranging from comparatively clean freshwater to polluted seawater
  • Required volume of treated water, from hundreds of litres per day to hundreds of thousands of litres per day
  • Infrastructure requirements, such as power generation
  • Transportability issues
  • Operating environment, including extreme hot and cold climates



    Containerised Water Treatment

   Trailer Mounted Water Treatment

Community Based Water Treatment

        Bespoke Water Treatment Solutions

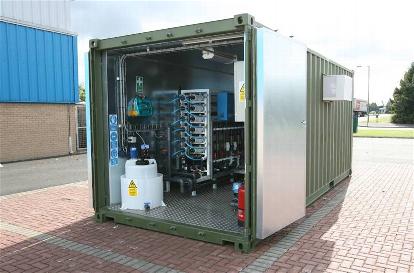

   Containerised Water Treatment


Standard shipping containers act as a highly flexible platform for the installation of Sargasso water treatment equipment, offering:

  • Ease of transportability using standard shipping methods, including transportation aircraft, e.g. C130.
  • High volumes of treated water output, up to 100’s of thousands of litres per day.
  • Ability to operate in extreme climatic conditions
  • Ease of installation - minimal infrastructure required
  • Wide variety of options, including water distribution system, water testing laboratory, integral generator.

    Sargasso C Series
    Containerised water treatment systems designed for ease of use in the most challenging environments.
    Dimensions
    6,058 x 2,438 x 2,591 mm CSC plated ISO container
    or 6,058 x 2,438 x 2,438 mm CSC plated ISO container
    Typical Capacity (increased capacities available if required)
    360,000 l/day from fresh (non-saline) sources 110,000 l/day from seawater sources
    Source Water
    The Sargasso C Series can configured to cope with individual water sources, or a range of water sources from fresh to saline
    Operating climatic conditions
    -40°C to +50°C (optional heater and air-conditioning units available)
    Generator
    Optional on-board power generation available, including dual fuel for operation in extreme cold climates
    Operation
    Simple operation requiring minimal operator training
    Minimal reliance on consumables

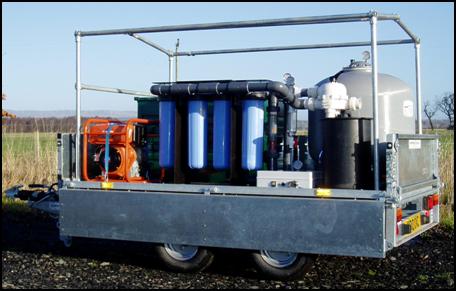

   Trailer Mounted Water Treatment


Sargasso Worldwide offers a range of trailer mounted products from small highly cost effective units to larger modular systems that enable the user to simply and rapidly change the water treatment technologies employed. Trailer mounted units are:

  • Transportable - all units can be towed by standard 4x4 vehicles
  • Standalone - units are designed to operate as standalone water treatment units, minimising logistic support
  • Rapidly deployed and commissioned - units can be operational within 1 hour of arriving on site.

    Sargasso T Series™
    Trailer mounted water treatment systems designed for rapid deployment and commissioning.
    Dimensions
    4,060 x 1,630 x 1,750 mm (Sargasso™ MT)
    6,050 x 2,400 x 2,700 mm (Sargasso™ T)
    Typical Capacity
    240,000 l/day (Sargasso™ MT)
    288,000 l/day (Sargasso™ T)
    Source Water
    Sargasso MT™ - Fresh (non-saline) water
    Sargasso T™ - Fresh (non-saline) to sea water
    Operating climatic conditions
    0°C to +50°C
    Generator
    Sargasso MT™ - No generator required, system operates using diesel pump.
    Sargasso T™ - 10kW, 12kVA generator fitted as standard
    Operation
    Simple operation requiring minimal operator training

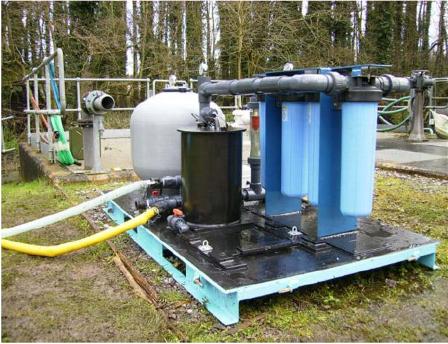

  Community Based Water Treatment


Sargasso Worldwide offers water treatment systems suitable for permanent installation to supply communities with potable water. These systems offer the following:

  • Volumes of treated water sufficient to provide drinking water for the smallest communities to communities of 15,000
  • Modular approach - enabling the correct treatment technology to be used for specific water sources
  • Ease of operation - Systems are designed to be operated by local engineers

    Sargasso V Series™
    Highly cost effective water treatment systems designed to supply potable water to small and medium sized communities.
    Design
    The V Series™ is a scaleable modular water treatment system designed to supply potable drinking water for communities.
    Typical Capacity
    The V Series™ can be sized to suit the size of community and demand, with individual units capable of supplying 15,000+ people with their drinking water needs.
    Source Water
    The standard V Series™ is designed to treat fresh (non-saline) water sources, including boreholes, river and lakes. Systems designed to treat brackish and seawater sources are available.
    Power Supply
    Units can either be connected to existing power supply, or can be supplied with it's own power generation system (diesel or solar).
    Infrastructure
    The V series™ can either be supplied in a self contained skid, or can be installed into existing buildings. The V series™ can also be supplied on a modular platform which makes transportation even by hand carrying, easy.
    Operation
    Units are designed to have minimal reliance on consumables. The simple design ensures operation and maintenance can be carried out by non- specialised engineers.

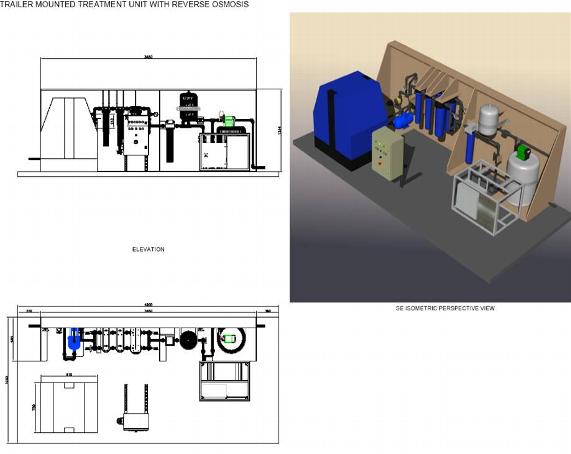

   Bespoke Water Treatment Solutions


Our team of water treatment specialists has experience in solving with a wide range of water treatment problems, requiring the utilisation of standard to highly specialist technologies and equipment.
